GML fader parts:

D23261      *Mono track

D22930      *Mono wiper assembly, 5-brush

D460152      Stereo track

D460179     Stereo wiper assembly, but board must be supplied

D23262/E    Slider assy

D460180     Slider assy

P32388      Guide rod

P15229      *PTFE bushing

P35090      *Paxolin washer for screw that holds wiper assy

P43202      *Chrome knob

D23402      *Silicone oil - 2 oz. bottle

(* indicate items in stock on 3/4/03)

1100/1500 Series fader parts:

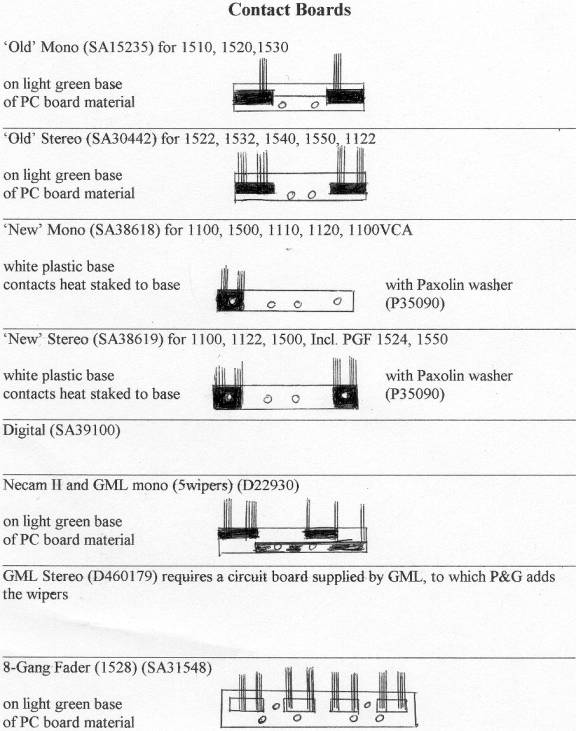

(see below for 'Contact Boards' description):

SA15235     Slider assembly - mono, old for 1510, 1520, 1530

SA38618     Slider assembly - mono, new for 1100, 1500, 1110, 1120, 1100VCA

SA38618     Slider assembly - stereo, old for 1522, 1532, 1540, 1550, 1122

SA38619     Slider assembly - stereo, new for 1100, 1122, 1500, Incl. PGF 1524, 1550

SA31548     Slider assembly - for 8-gang fader 1528

P34388      Guide Rod - 1100/1500

P34375      End block left hand

P34376      End block right hand

P34513      Slider block

P15286      Rubber Stop

P15229      PTFE bushing

71-004-000  Microswitch

61-014-101  15-pin socket (Painton)

61-014-002  15-pin plug (Painton)

61-014-102  15-pin socket with cover (Painton)

61-014-001  15-pin plug with cover (Painton)

63-094-001  Screw (side plate/mounting cover)

63-026-001  Screw (top plate #4 Posidrive)

63-032-001  Screw (fascia Silver, 10BA x 1/8")

63-032-101  Screw (fascia Black, 10BA x 1/8")

63-088-003 PGC    Screw (contact board)

ST35285/(resistance)    Track (standard 1110/1510) linear mono

ST35094/(resistance)    Track (standard 1120/1520) log mono

ST35052/(resistance)    Track (standard 1122/1522) log stereo
